MPPT Solar Charge Controller 40A 12V 24V Auto Max PV 100V Built-in WiFi Adapter APP Remote Monitor Solar Panel Regulator LCD Display for Gel Sealed Flooded LifePo4 User
Product details
| Management number | 214765650 | Release Date | 2026/04/12 | List Price | US$48.00 | Model Number | 214765650 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

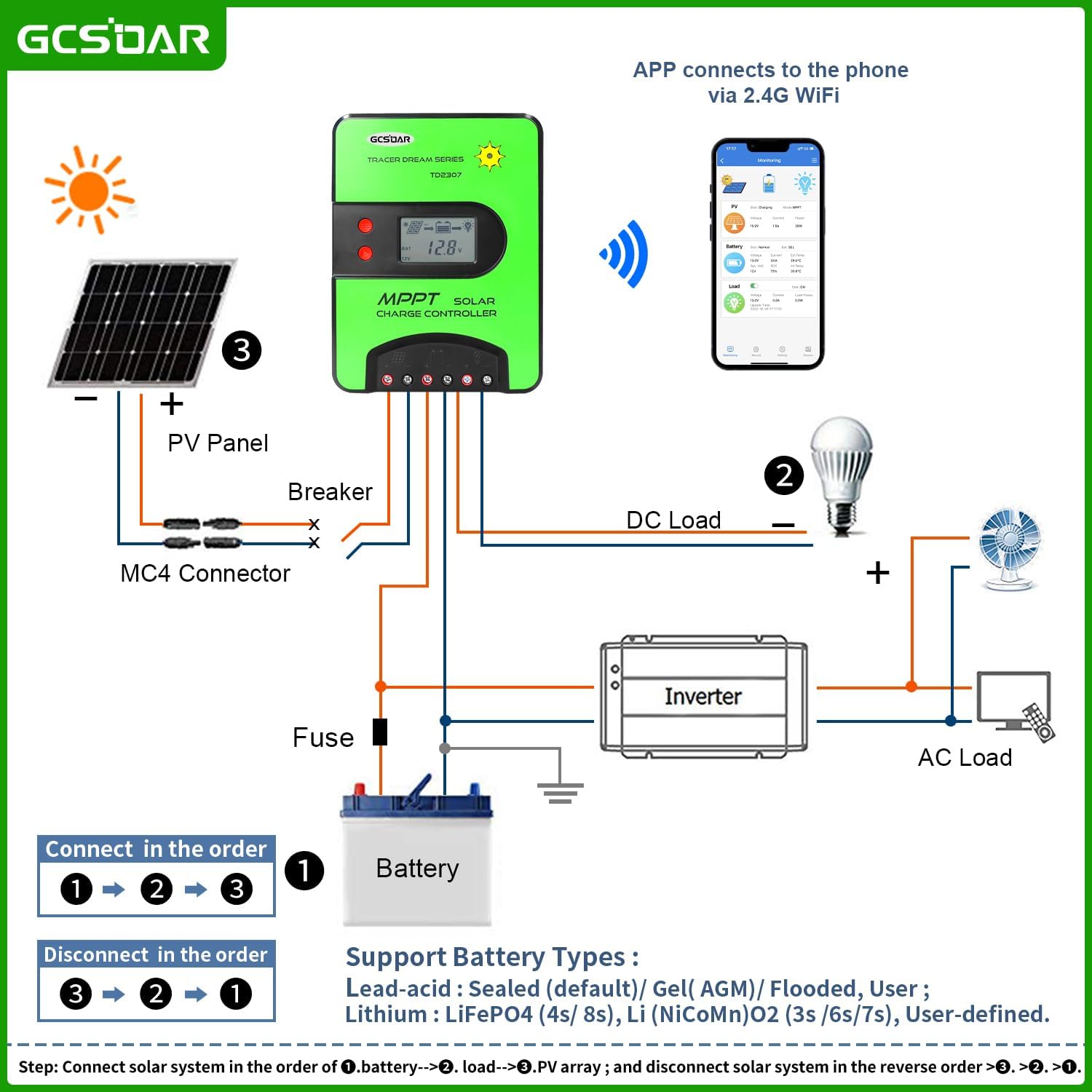

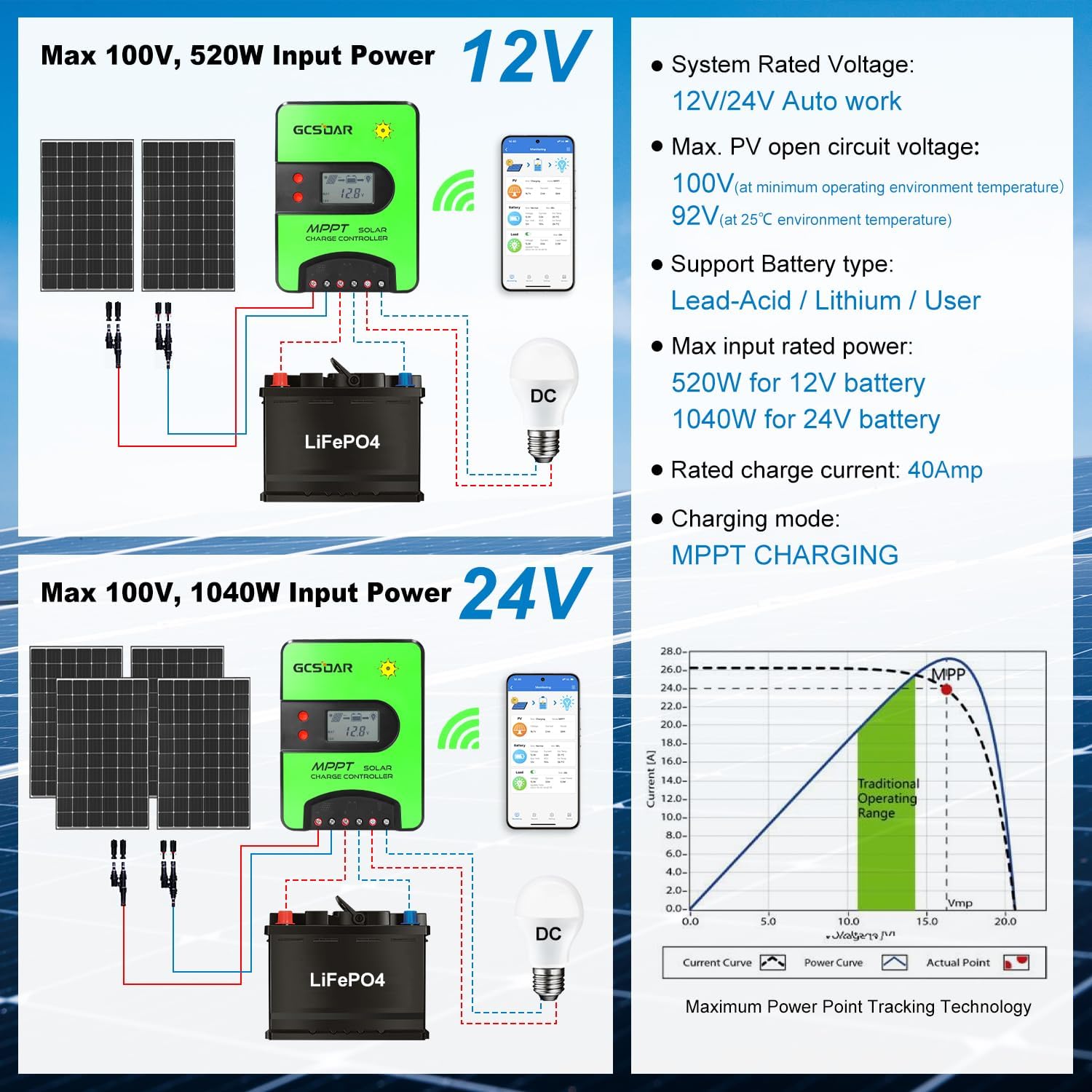

- GCSOAR MPPT Solar Charge Controller 40A TD2410-100V(Built-in WiFi module), auto compatible with 12V or 24V battery system, Max PV 100V, Solar panel Max input 520W charge for 12V battery or 1040W charge for 24V battery
- Built-in WiFi module : Remote monitor and set parameters by APP(iConnect). ''Online mode'' suitable for home or other environments that can provide 2.4G router wireless network access, high speed network connection anytime anywhere, not limited by distance when there is a network signal. ''Offline mode'' suitable for RV, Yacht, Boat, Camping etc. environments for short distance effective signal transmission. Download APP for Android or iOS, You could watch video tutorials within the APP
- 4-Stage Safely Charging: Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithium batteries as well as Lithium Reactivation. Intelligent charging method prolong your battery’s life. 12V/24V Auto Detect and Multi-Cell Adaptation for Gel AGM Sealed Flooded batteries. Lifepo4 Lithium batteries require manual selection to set the battery system voltage to 12V or 24V, while allowing the user to manually customize the mode to adjust the battery parameters
- Die-cast aluminium design ensuring excellent heat dissipation and Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day
- Extremely Safe: CE, FCC, IEC, UL and RoHS certificated. Full system protection from program and insulated shell safeguards your solar system. The intelligent self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, overheating, and reverse current. The certificated TD charge controller with insulated shell prevents you from accident and keep your solar system in safe in high temperature
